Carmec Machine Tools
Carmec manufacture and distribute professional equipment and engine rebuilding machines for the automotive workshops industry as per the list below.
Swing Head Surface Grinding & Milling Machine
Model SG-300
The SG330 is a handy small swing head surface grinding and milling machine for cylinder heads and engine blocks of passenger cars and light trucks. With two spindle speeds in its head, it is suitable for resurfacing aluminium, cast iron and also alu /pre-chambers cylinder heads. The machine has automatic feed of the wheelhead in horizontal movement and manual in vertical movement.

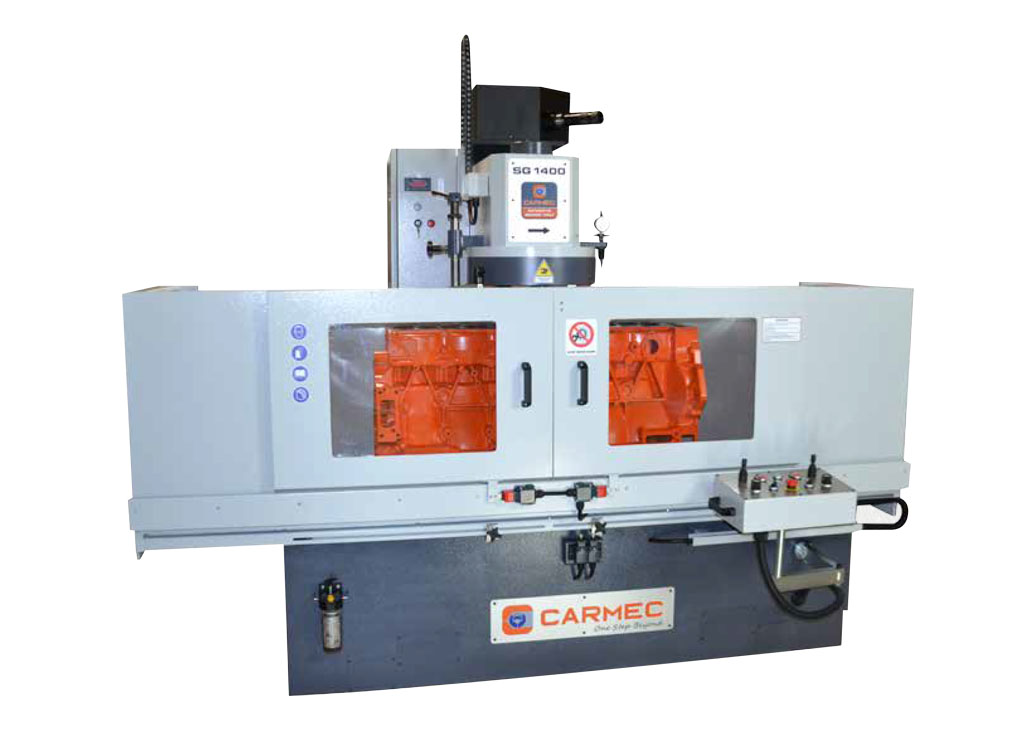

Cylinder Head and Block Resurfacing Machine
Model SG-1400
Surface grinding and milling machine for cylinder heads and blocks. It can resurface all popular cast iron, aluminium, diesel cylinder heads with steel pre-combustion chambers and blocks at full grinder speeds within reduced processing times. The rigid cast iron base and the table slide on prismatic guides at continuous lubrication. The infinitely variable table traverse produces the exact surface finish desired for the wide range of gasket materials used.

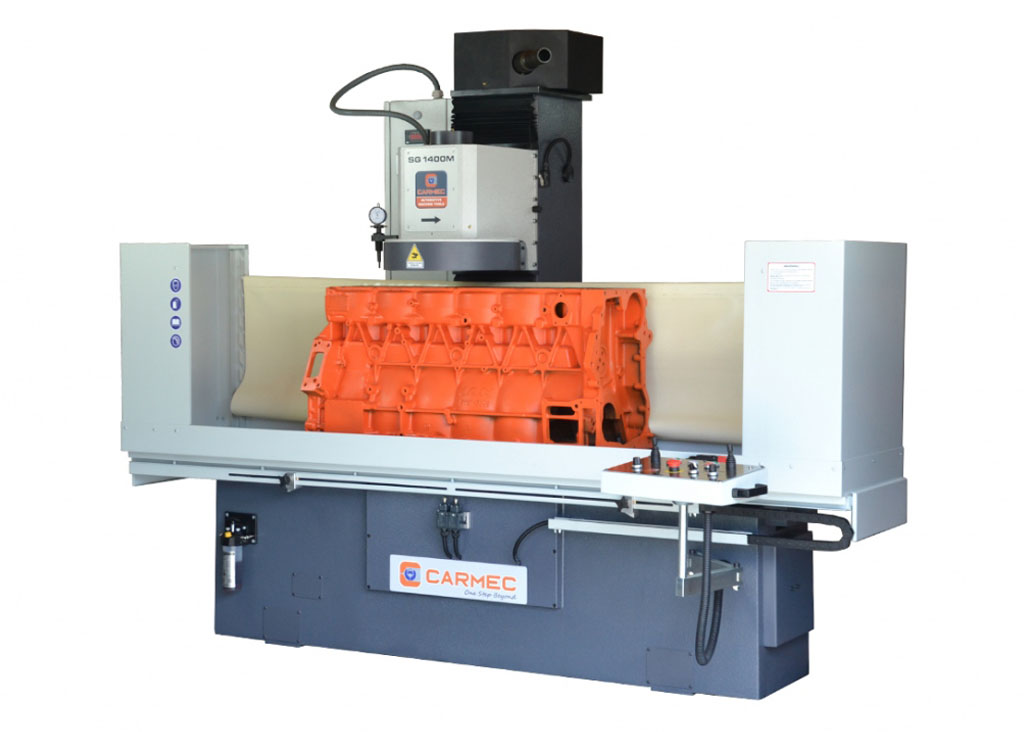

CBN-PCD Cylinder Head and Block Resurfacing Machine
Model SG-1400M
This machine can resurface all popular cast iron, aluminium, diesel cylinder heads with steel pre-combustion chambers and blocks at full grinder speeds (without coolants) within reduced processing times. The rigid cast iron base and table incorporate flat and V-shaped way design, machined directly on the basement, assuring accurate parallelism and side-to-side tracking. The cast iron “box” type columns with dove tail ways and precision ball screw drive feed make the SG 1400M a durable and accurate machine.

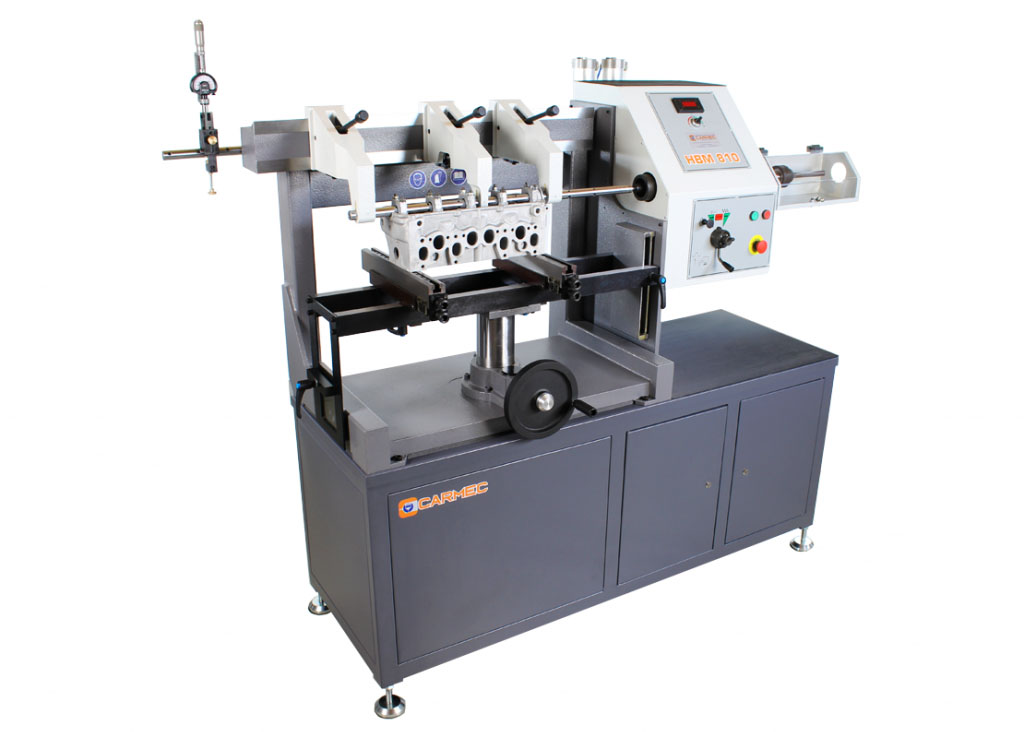

Line Boring Machine for Cylinder Heads and Blocks
Model HBM 810
This is an excellent machine for line boring blocks or heads. The HBM 810 Horizontal Boring Machine is suitable for reconditioning camshaft housing holes on medium size blocks. Very precise size control and surface finish eliminates line honing all together. The centering of boring holes is achieved on the boring rod by means of suitable center squares and by a tool holder slide adjustable in height.

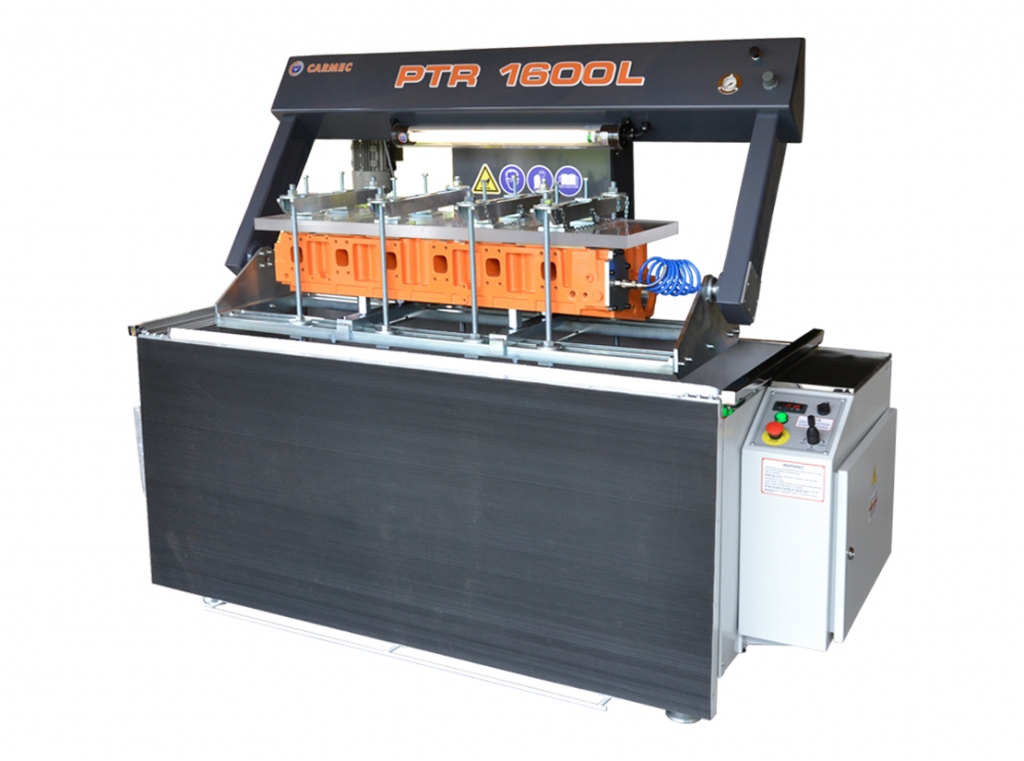

Pressure Tester for Cylinder Heads
Model PTR 1600L
The PTR hydraulic pressure tester or test bench allows for the quick and easy detection of fissures and cracks and the water tightness control in the cooling circuits of cylinder heads and engine blocks.

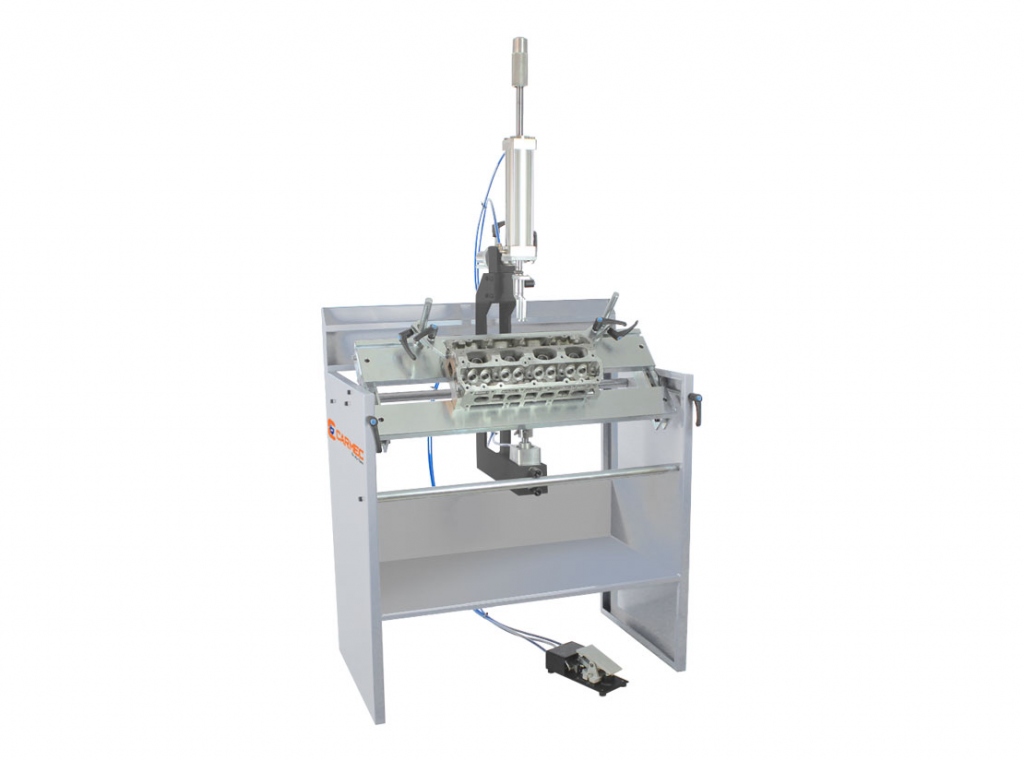

Universal Cylinder Head Work Bench
Model PWS 900
The most universal work station with easy access to all faces of the cylinder head. For disassembling and assembling of valves springs on cylinder heads for cars, trucks and motorcycles. Valve compressor lock for easy retainer removed “hand free”. Access for camshaft setting and all other cylinder head operations.
